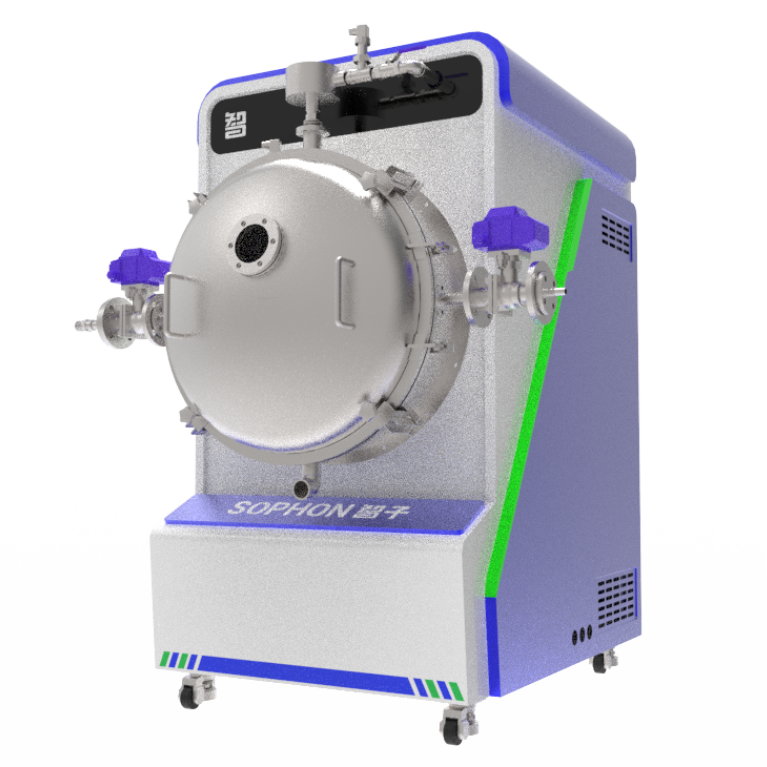

Vacuum Defoamer
The Vacuum Defoamer, also known as a foam separator, is a highly-efficient bubble remover designed for fluid and semi-fluid materials (such as gel solution, slurry, etc.). During industrial production, the material is often mixed with bubbles, which not only affect the appearance of the product, but also may have a negative impact on the performance of the product. The emergence of the vacuum defoamer has effectively solved this problem.
The vacuum defoamer skillfully combines the vacuum environment and centrifugal force to achieve efficient bubble removal. 1. Vacuum Environment: Through the vacuum system, a low pressure environment is maintained inside the vacuum defoamer. In this vacuum environment, the material is sucked into the gas-liquid separation chamber inside the defoamer. In the gas-liquid separation chamber, with pressure declining and the solubility of bubbles in the material decreasing, the bubbles will expand and some of them will rupture or be guided to the surface of the material to realize preliminary separation between bubbles and liquid. 2. Centrifugal Force: The motor drives the gas-liquid separation chamber to rotate at a high speed, and the material forms a thin film layer spreading outward from the center under the action of centrifugal force, thus bubble separation is achieved in the process. The material obtains the maximum centrifugal force when it flows to the outer edge of the gas-liquid separation chamber. Due to specific gravity difference between liquid and bubbles, the material is separated from bubbles by strong centrifugal force. Bubbles are extracted by the vacuum system and liquid is discharged from the defoamer through material outlet.
-
Online Production
Directly integrated into the production line for continuous, uninterrupted bubble removal, significantly improving production efficiency. -
Gentle Treatment
No direct shear in the material treatment process and less introduction of magnetic foreign matter, ensuring the purity of the material. -
Easy Maintenance
Simple and reasonable structure, which is easy to install, disassemble and clean. -
High Utilization Rate
Reduce transit part and the risk of contamination as well as improve material utilization rate by decreasing waste and loss of raw materials.
-
Economical
No additional auxiliary devices such as boosters and storage tanks are required at the inlet and outlet, which effectively lower the cost of investment.
-
Materials with high viscosity; nanoscale materials
-
Solid-liquid Mixing
-
Liquid-liquid mixing
-
New Materials IndustryConsidering the particularity of the new materials industry, SOPHON provides customized material conveying solutions to handle special materials with high temperature, high viscosity, and corrosion.
-
Pharmaceutical IndustryTo meet the requirements of high cleanliness and sterility for material conveyance in the pharmaceutical industry, SOPHON adopts special materials and sealing design to effectively prevent cross-contamination and ensure the safety and effectiveness of drug production.
-
Plastic IndustrySOPHON provides precise and efficient material conveying systems in the plastic industry that can handle both raw material particles and finished plastic, ensuring the continuity of production process and product quality.
