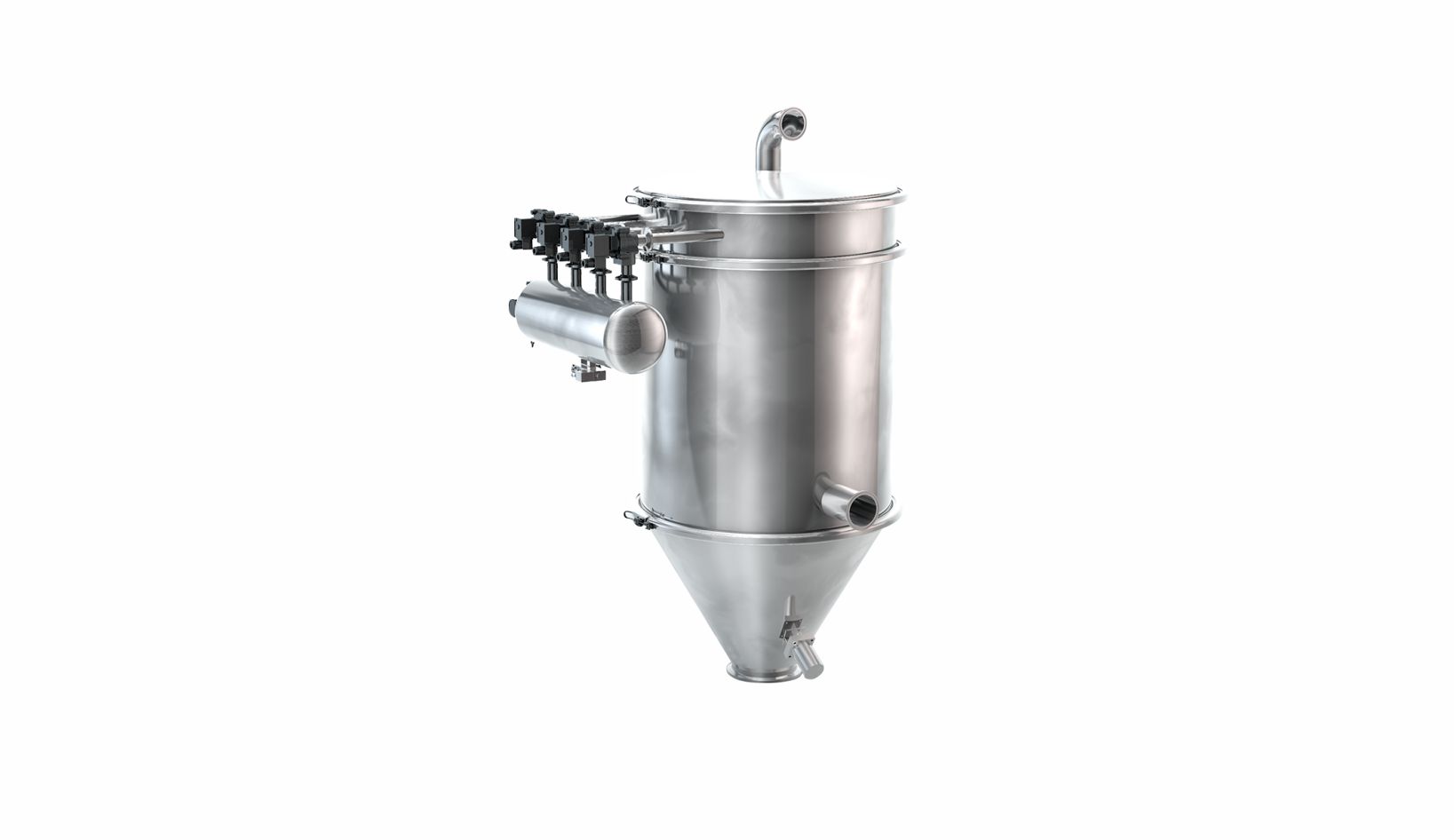

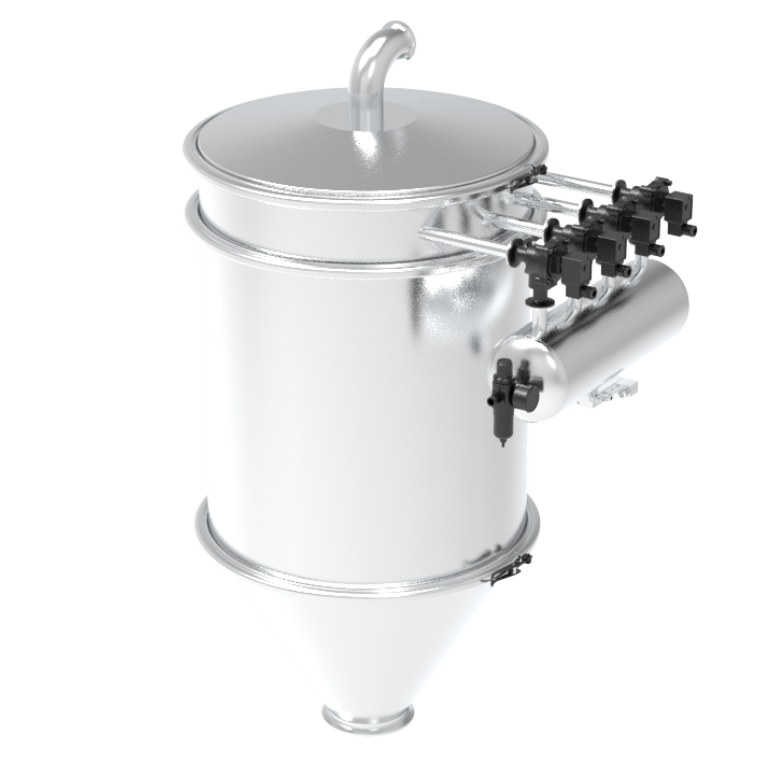

Vacuum Feeder
The vacuum feeder is a kind of equipment used to convey powder, granular, or fibrous materials. It is widely used in pharmaceutical, chemical, food and other industries.
The working principles of the vacuum feeder are mainly divided into the following parts: 1. Negative Pressure Creation: Create a negative pressure environment with vacuum extraction, so that the suction nozzle (material inlet) and the entire system are in certain vacuum status. 2. Material Airflow Formation: Under negative pressure, granular or powdery materials are sucked into the material inlet along with outside air, forming a continuous airflow. 3. Material & Gas Separation: Based on the working modes, there will be different processing methods and characteristics.
-
High EfficiencyThe vacuum feeder can convey materials quickly and continuously, improving production efficiency. -
Flexible AdaptationWith a compact structure and easy to install, the equipment can be selected and customized according to actual needs. -
Environmental ProtectionThe closed conveying method is adopted to avoid the scattering and dust pollution of materials during the conveying process, thus meeting the environmental protection requirements. -
Highly AutomatedAdvanced control system and sensors are equipped to monitor the operating status of the equipment and material delivery in real time, thus automatic adjustments can be carried out as needed.
-
Pharmaceutical IndustryConveying pharmaceutical powder, pills, capsules and other materials. These materials have high requirements for hygienic conditions. The closed conveying method of the vacuum feeder can ensure that the materials are not contaminated during the conveying process and maintain their purity and quality
-
Food IndustryConveying powder and granular food raw materials such as flour, sugar, grain and food additives. This delivery method can ensure the cleanliness and hygiene of the food production process, prevent materials from being contaminated during delivery, and ensure the quality and safety of food.
-
Chemical IndustryConveying chemical raw materials, powders, granules, and other materials, such as pigments, plastic granules, catalysts, chemical additives, etc. These materials are often corrosive or flammable and explosive. The closed conveying method of the vacuum feeder can ensure the safety of operators and prevent environmental polltion caused by material leakage.
-
Building Materials IndustryDelivering cement, lime, sand, and other raw materials. These materials are usually heavy and easy to scatter. The conveying method of the vacuum feeder can alleviate manual labor intensity and improve production efficiency.
-
Laboratory & Small-scale ProductionThese occasions usually require precise control of the conveying volume and conveying speed of materials. The conveying parameters of the vacuum feeder can be adjusted flexibly to meet experimental and production needs.
